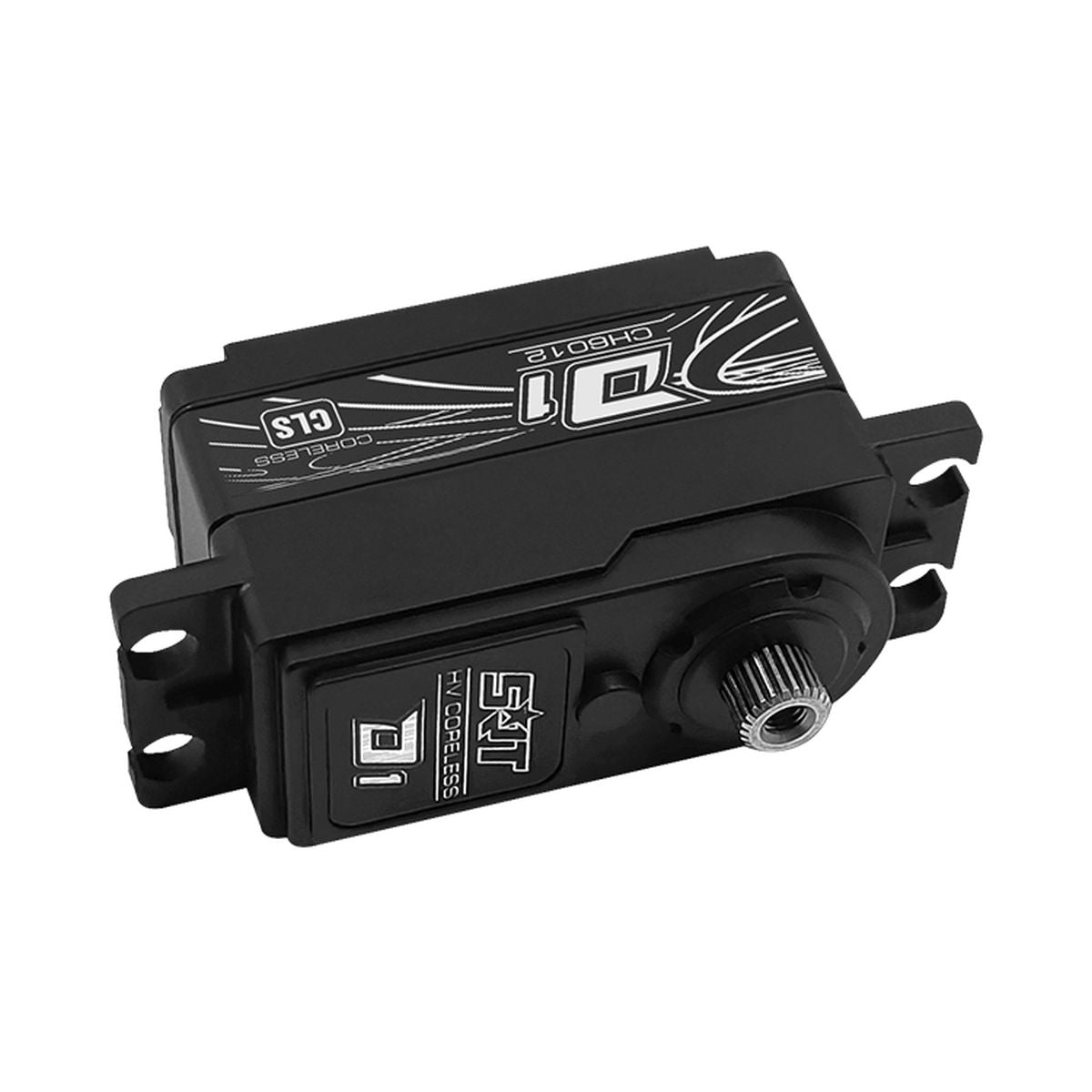

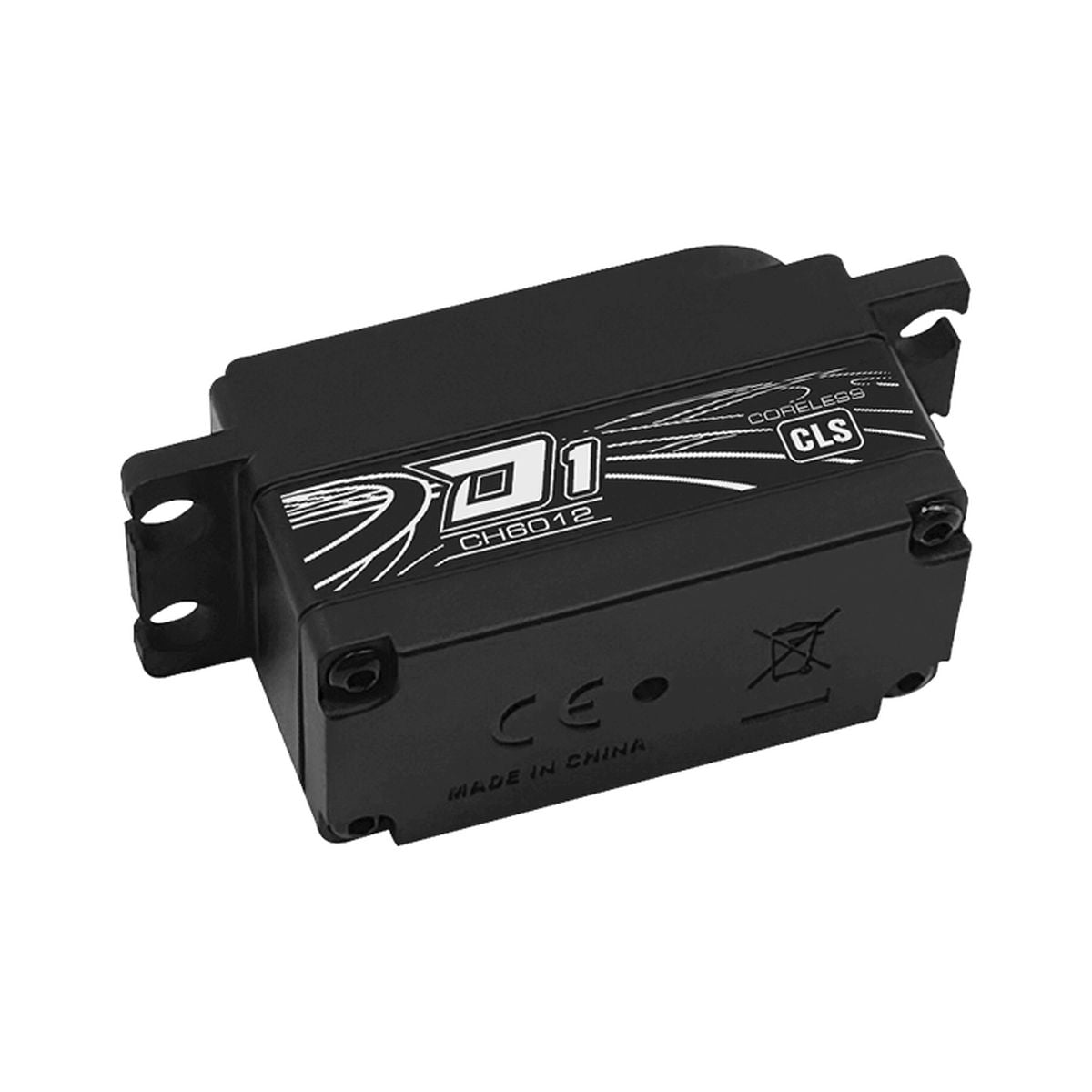

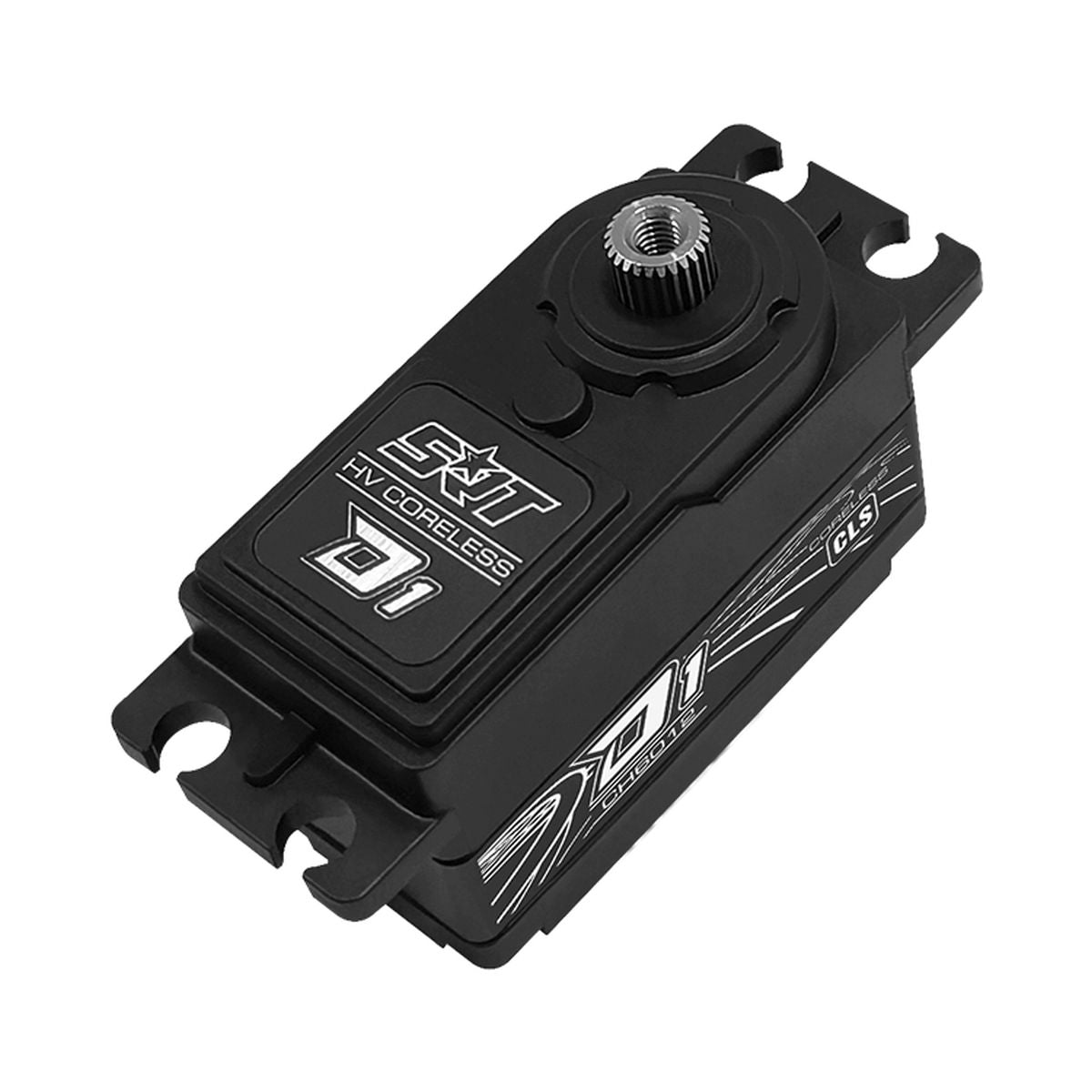

CH6012 - Low Profile HV Coreless Digital Servo, .06sec / 166.6oz @ 7.4V
$49.99
Sale price
$49.99
Regular price
Skip to product information
The latest generation of SRT servos provides you with the performance you need for any 1/10th to 1/8th scale vehicle application. This is a low profile standard sized servo for High-Voltage applications up to 7.4V. Featuring SRT innovations like all metal servo mounting tabs to keep them in place through the most extreme conditions, SRT servos will fit most any application.
CH6012 - Low Profile HV Coreless Digital Servo, .06sec / 166.6oz @ 7.4V
$49.99
Sale price
$49.99
Regular price
Features:
- Ideal for 1/10 on road and 1/8 off road scale applications
- Incredible efficiency and low power consumption
- 2 usec Dead Band
- 1-Year Limited Warranty
Specifications:
- Type: Digital
- Bearing: Dual
- Motor Type: Coreless

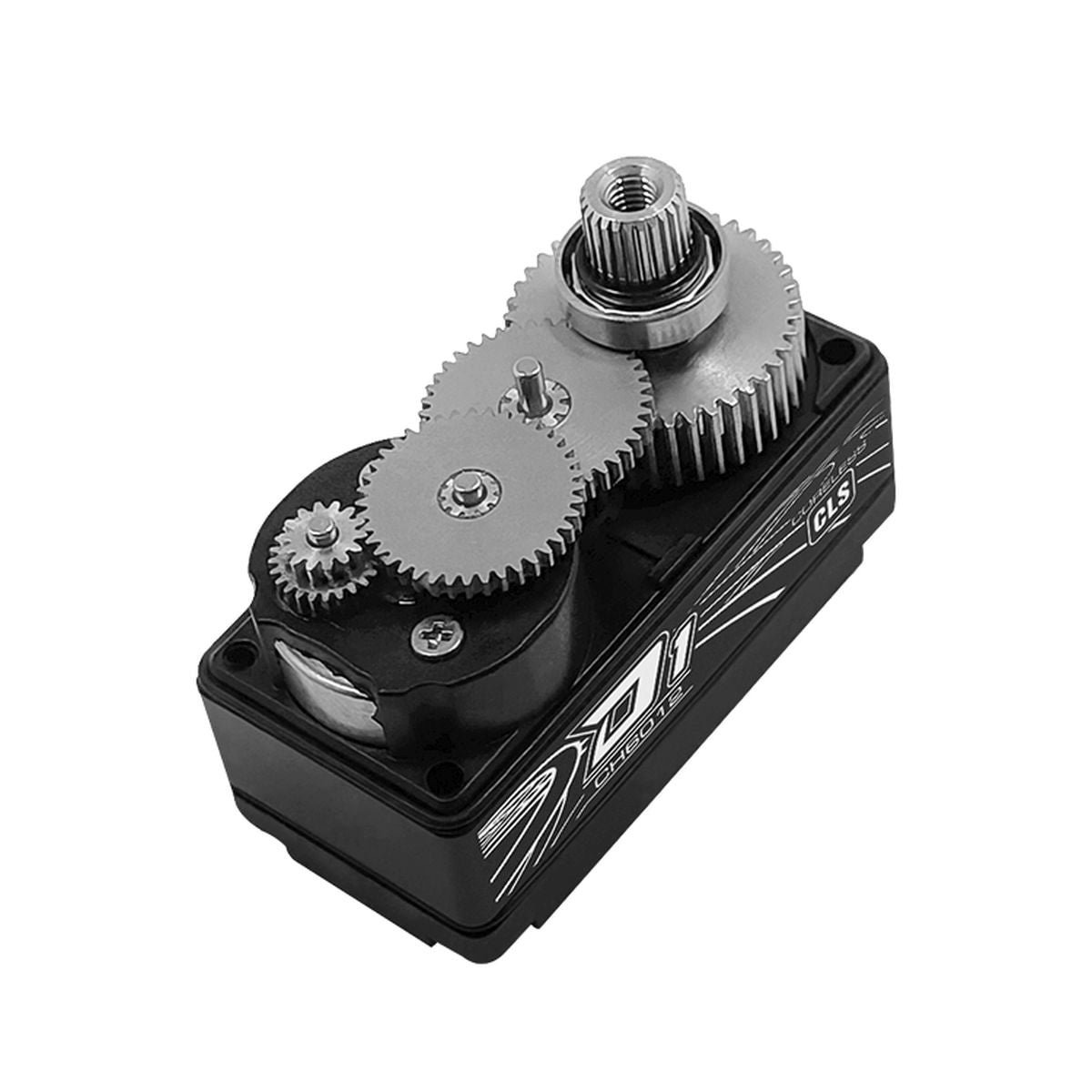

- Gear Type: Metal
- Gear Material: Titanium & Aluminum
- Control System: Pulse width control
- Working Frequency: 1520Is / 330hz
- Operating Voltage: dc6.0-7.4v
- Operating Temperature Range: -10 to + 60 degree
- Operating Speed (6.0v): 0.07 sec/60 degrees at no load
- Operating Speed (7.4v): 0.06 sec/60 degrees at no load
- Stall Torque (6.0v): 9.0kg.cm (125.0 oz/in)
- Stall Torque (7.4v): 12.0kg.cm (166.6 oz/in)
- Potentiometer Drive: Direct Drive
- Dimensions: 41.0x20.0x26.4 mm /1.61x0.79x1.04 in
- Weight: 48.0g (1.69 oz)
- Connector Wire Length: jr 110 mm
